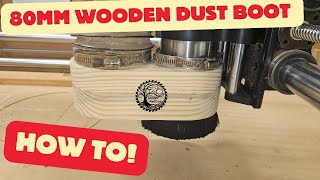

Making a DIY dust shoe for CNC router. Two sided machining

Hi Guys!

Free CNC files for dust shoe below:
https://www.patreon.com/posts/diy-cnc-router-95312764?utm_medium=clipboard_copy&utm_source=copyLink&utm_campaign=postshare_creator&utm_content=join_link

Dust cover brush:
https://geni.us/Q3MBW

Glue gun:
https://geni.us/Tek3AF

🔔 Subscribe for more CNC and woodworking videos just like this🔔
https://www.youtube.com/channel/UCuJnTME3kj0vrHcBohJwYrg?sub_confirmation=1

✅CNC I recommend✅
1️⃣ OpenBuilds CNC router: https://openbuildspartstore.com/lead-cnc-machine-1515-fully-loaded/?ref=HwWISj9MJZ14VI
2️⃣ INTERFACE CNC Touch: https://openbuildspartstore.com/interface/?ref=HwWISj9MJZ14VI
3️⃣ XYZ Touch Probe Plus: https://openbuildspartstore.com/xyz-touch-probe-plus/?ref=HwWISj9MJZ14VI

✅Router bits I recommend✅
1️⃣ Starter Kit 💰budget friendly💰: https://geni.us/LiJ5vH
1️⃣ Starter kit (Sharkbits) https://openbuildspartstore.com/3d-sign-maker-4-pc-cnc-bit-kit-v2/?ref=HwWISj9MJZ14VI

🤝HELP SUPPORT THE CHANNEL 🤝
1️⃣ Patreon: https://patreon.com/Falcon390CNCWorks?utm_medium=clipboard_copy&utm_source=copyLink&utm_campaign=creatorshare_creator&utm_content=join_link
2️⃣ Etsy: https://www.etsy.com/uk/shop/Falcon390Workshop1?ref=seller-platform-mcnav
3️⃣ Buy me pizza🍕: https://www.buymeacoffee.com/falcon390cncworks

✅ For inquiries contact me at:
📧 falcon390shop@gmail.com
-----------------------------------------------------------------------------------------------------------------------------

Material Setup Job Type: Double Sided
Side of Material: Top

Material Flip Direction:
Material Block:

(X):400mm (Y):116mm (Z):20.5mm

Home / Start Position:

X:0mm Y:0mm Z:5mm

Datum Position:
Z-Zero:Top of Material

XY: Bottom Left Corner

Clearance Z1: 3mm
Toolpaths Summary
Toolpaths : 8
Chamfer 60 Degrees V-bit
Pocket 15mm (BOLT HEAD)
Pocket 12.5mm (NUT)
Pocket 11mm (Bolt thread)
Pocket (magnets) [1]
Outline (in)
Outline 3.175mm EM
Reff points
Tool Name:
[1] V-Bit (60.0° - 3.175 mm)
[1] End Mill (3.175 mm)
[1] End Mill (3.175 mm)
[1] End Mill (3.175 mm)
[1] End Mill (3.175 mm)
[1] End Mill (3.175 mm)
[1] End Mill (3.175 mm)
[1] End Mill (3.175 mm)

Time Estimate : 00:09:28
00:01:23
00:00:56
00:00:13
00:00:18
00:00:26
00:02:23
00:02:42
00:01:07

Toolpath: Chamfer 60 Degrees V-bit

Toolpath Info
Time Estimate: 00:01:23
Toolpath Type: 2D Profile Toolpath
Feed Rate: 3800 mm/min
Plunge Rate: 1200 mm/min
Spindle Speed: 18000
Tool InfoTool Name: V-Bit (60.0° - 3.175 mm)
Tool Type: V-Bit
Tool Number: 1
Max Cut Depth: 2mm
Pass Depth: 2mm
Stepover: 0.0635mm

Toolpath: Pocket 15mm (BOLT HEAD)

Toolpath Info
Time Estimate: 00:00:56
Toolpath Type: Pocket Toolpath
Feed Rate: 3500 mm/min
Plunge Rate: 1000 mm/min
Spindle Speed: 18000
Tool InfoTool Name: End Mill (3.175 mm)
Tool Type: End Mill
Tool Number: 1
Max Cut Depth: 15mm
Pass Depth: 3mm
Stepover: 1.2mm
Tool Notes:

Toolpath: Pocket 12.5mm (NUT)

Toolpath Info
Time Estimate: 00:00:13
Toolpath Type: Pocket Toolpath
Feed Rate: 3500 mm/min
Plunge Rate: 1000 mm/min
Spindle Speed: 18000
Tool InfoTool Name: End Mill (3.175 mm)
Tool Type: End Mill
Tool Number: 1
Max Cut Depth: 12.5mm
Pass Depth: 3mm
Stepover: 1.2mm
Tool Notes:

Toolpath: Pocket 11mm (Bolt thread)

Toolpath Info
Time Estimate: 00:00:18
Toolpath Type: Pocket Toolpath
Feed Rate: 3500 mm/min
Plunge Rate: 1000 mm/min
Spindle Speed: 18000
Tool InfoTool Name: End Mill (3.175 mm)
Tool Type: End Mill
Tool Number: 1
Max Cut Depth: 11mm
Pass Depth: 3mm
Stepover: 1.2mm
Tool Notes:

Toolpath: Pocket (magnets) [1]

Toolpath Info
Time Estimate: 00:00:26
Toolpath Type: Pocket Toolpath
Feed Rate: 3500 mm/min
Plunge Rate: 1000 mm/min
Spindle Speed: 18000
Tool InfoTool Name: End Mill (3.175 mm)
Tool Type: End Mill
Tool Number: 1
Max Cut Depth: 3.1mm
Pass Depth: 3mm
Stepover: 1.2mm
Tool Notes:

Toolpath: Outline (in)

Toolpath Info
Time Estimate: 00:02:23
Toolpath Type: 2D Profile Toolpath
Feed Rate: 4000 mm/min
Plunge Rate: 2000 mm/min
Spindle Speed: 18000
Tool InfoTool Name: End Mill (3.175 mm)
Tool Type: End Mill
Tool Number: 1
Max Cut Depth: 15mm
Pass Depth: 3mm
Stepover: 1.2mm
Tool Notes:

Toolpath: Outline 3.175mm EM

Toolpath Info
Time Estimate: 00:02:42
Toolpath Type: 2D Profile Toolpath
Feed Rate: 4000 mm/min
Plunge Rate: 2000 mm/min
Spindle Speed: 18000
Tool InfoTool Name: End Mill (3.175 mm)
Tool Type: End Mill
Tool Number: 1
Max Cut Depth: 15mm
Pass Depth: 3mm
Stepover: 1.2mm
Tool Notes:

Toolpath: Reff points

Toolpath Info
Time Estimate: 00:01:07
Toolpath Type: Pocket Toolpath
Feed Rate: 3500 mm/min
Plunge Rate: 1000 mm/min
Spindle Speed: 18000
Tool InfoTool Name: End Mill (3.175 mm)
Tool Type: End Mill
Tool Number: 1
Max Cut Depth: 20.7mm
Pass Depth: 3mm
Stepover: 1.2mm
Tool Notes:
